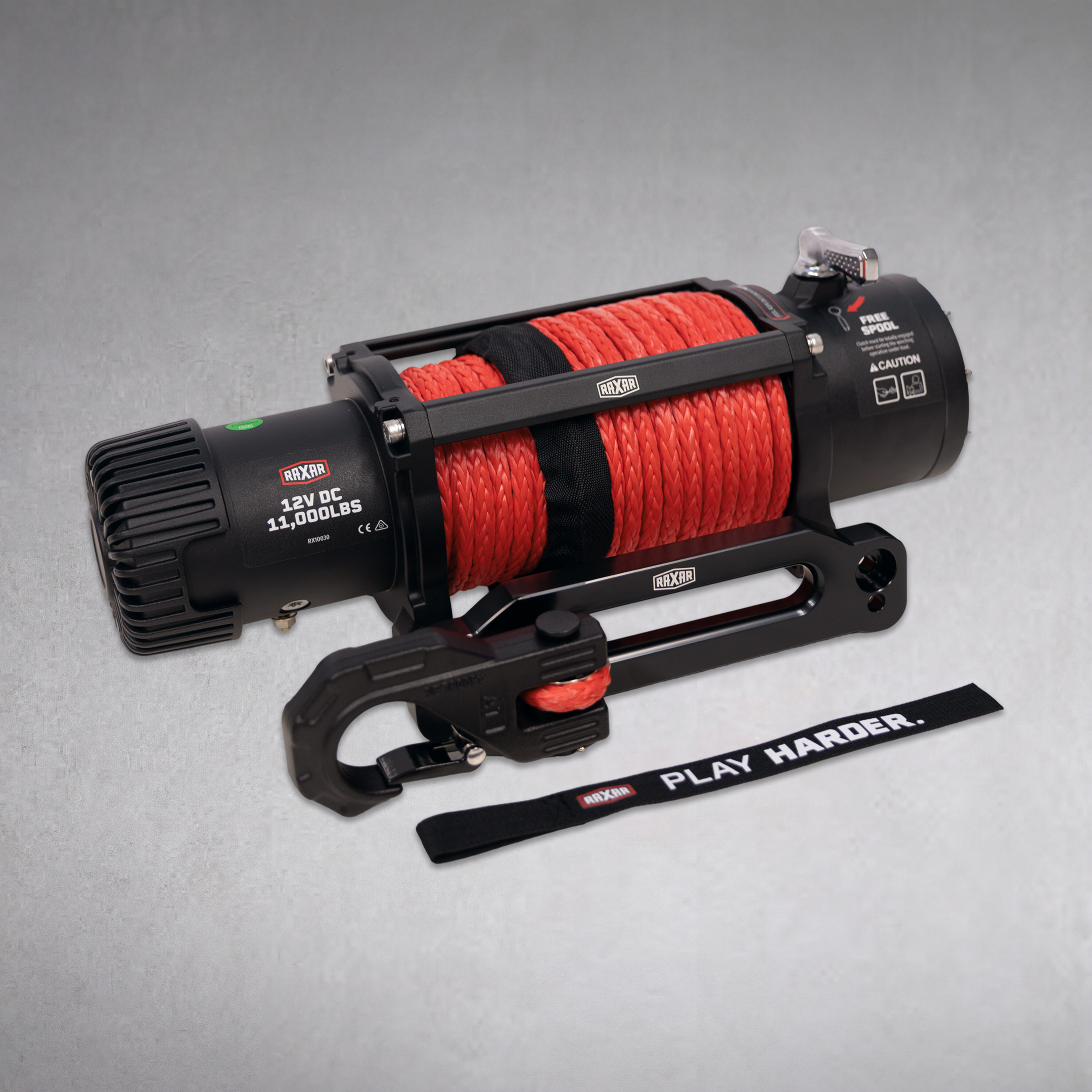

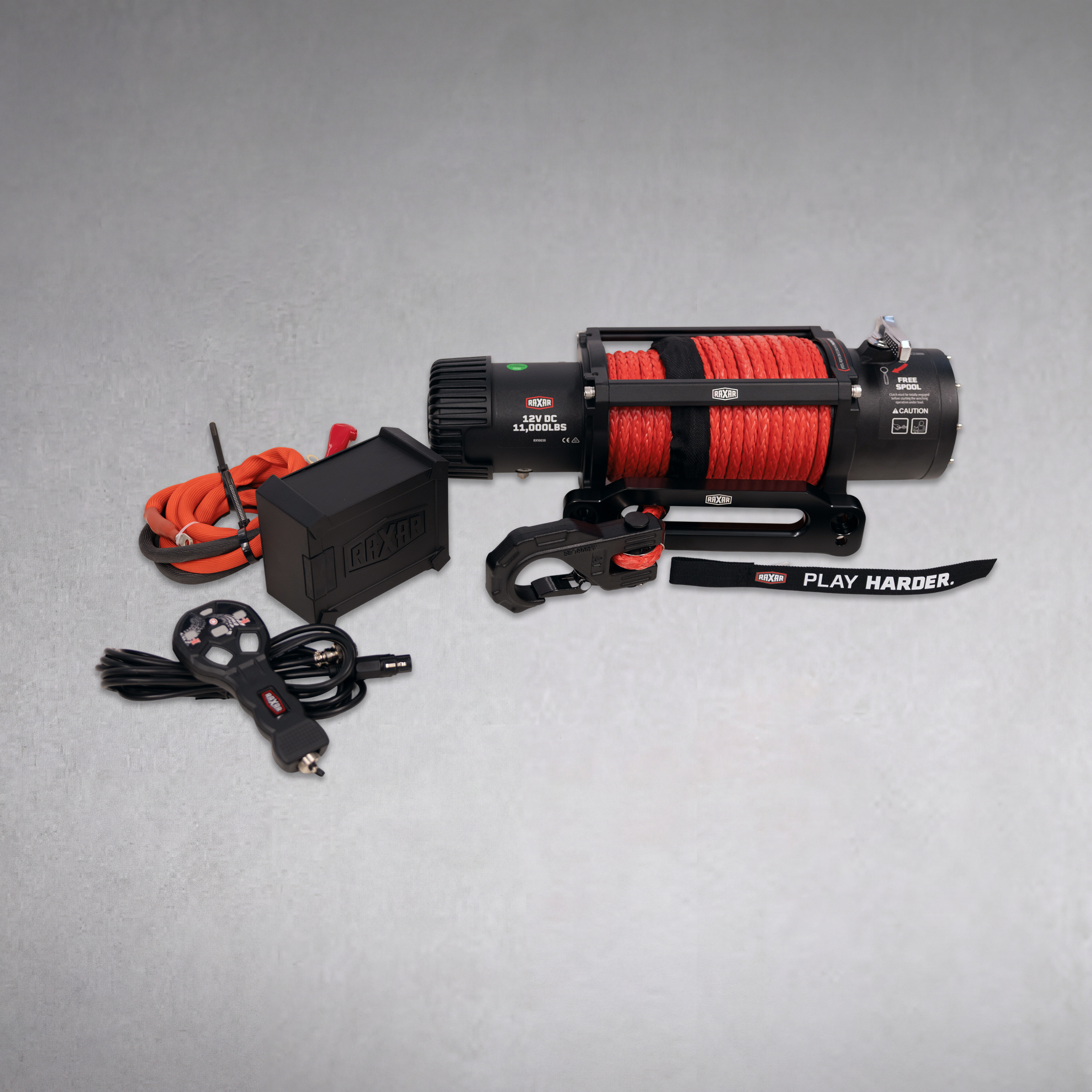

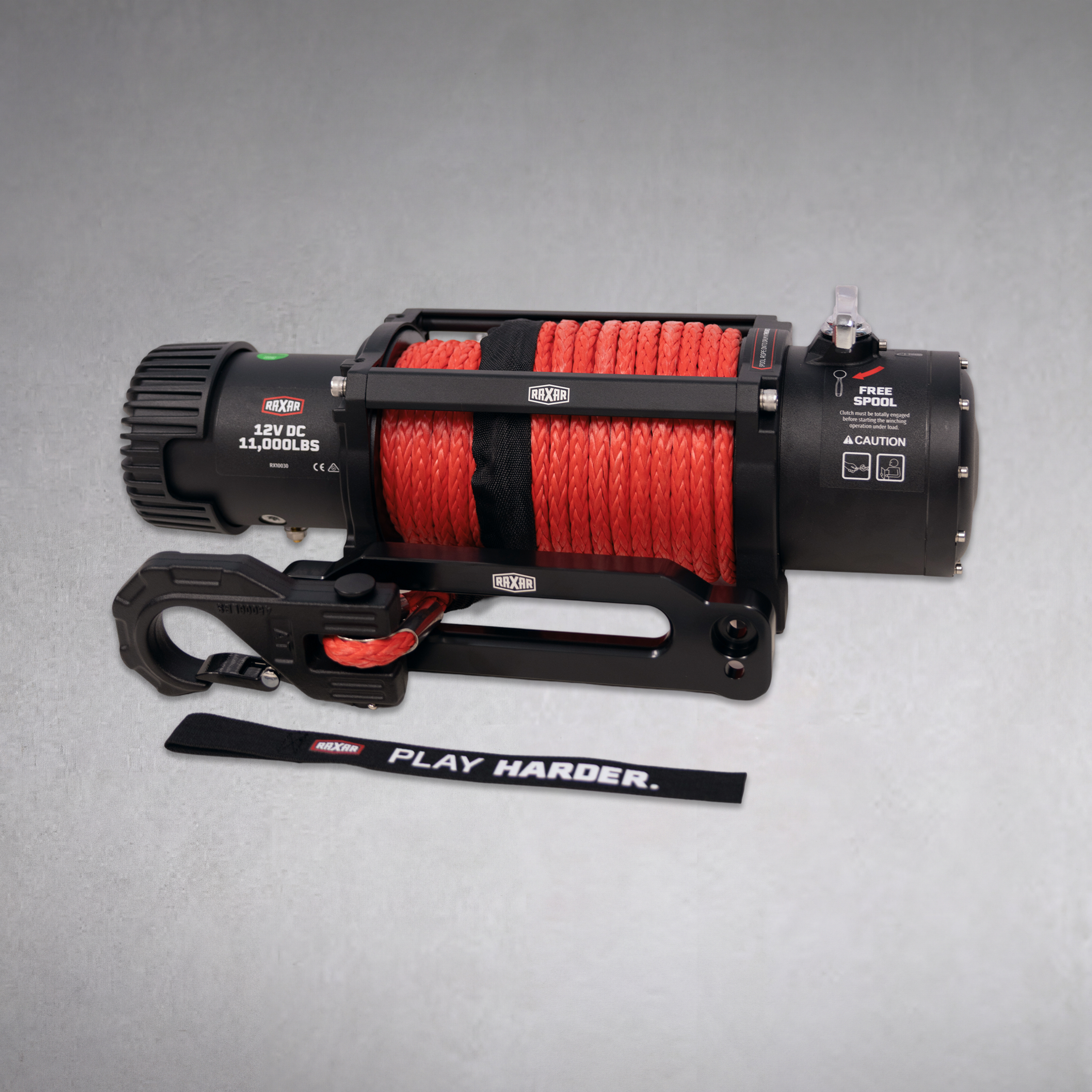

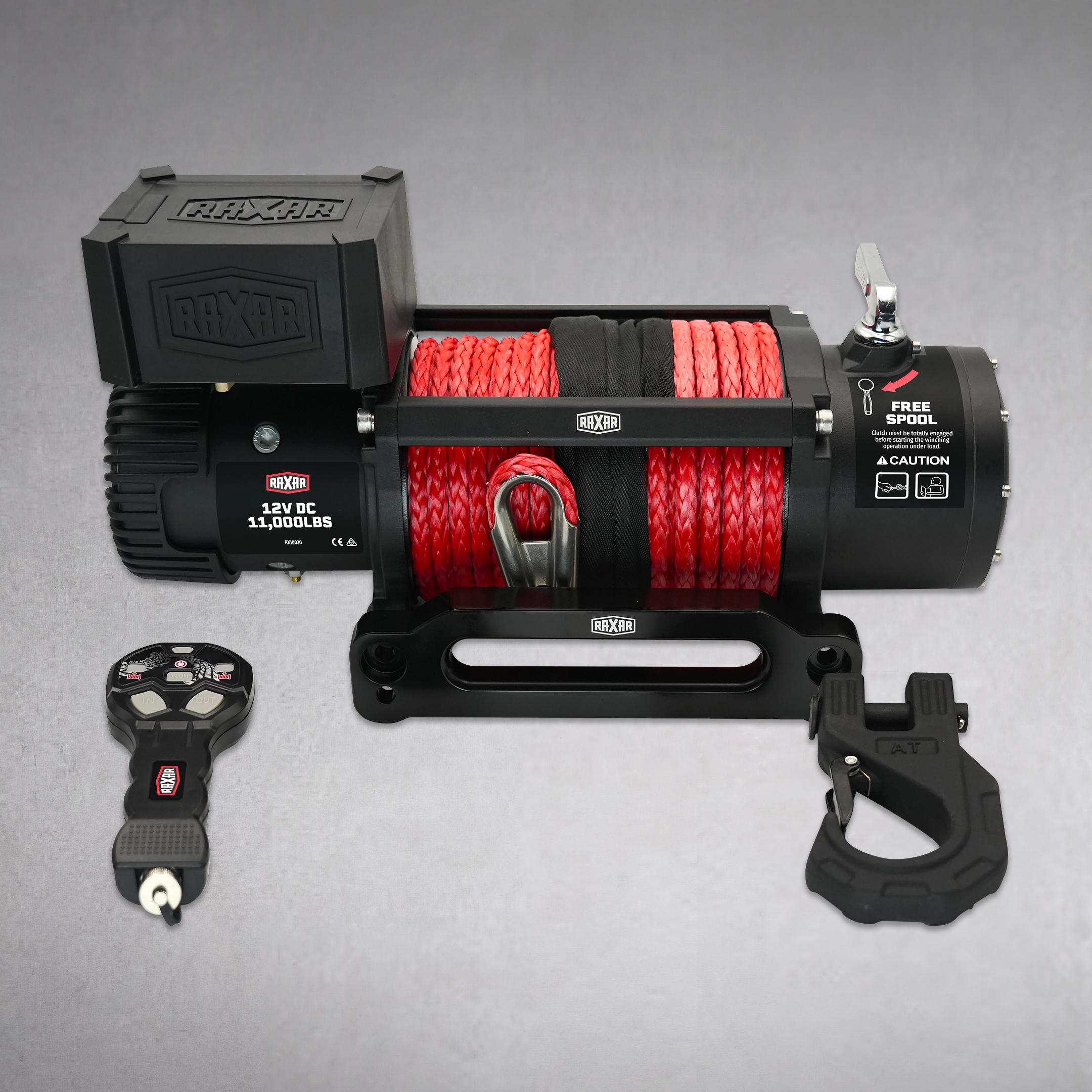

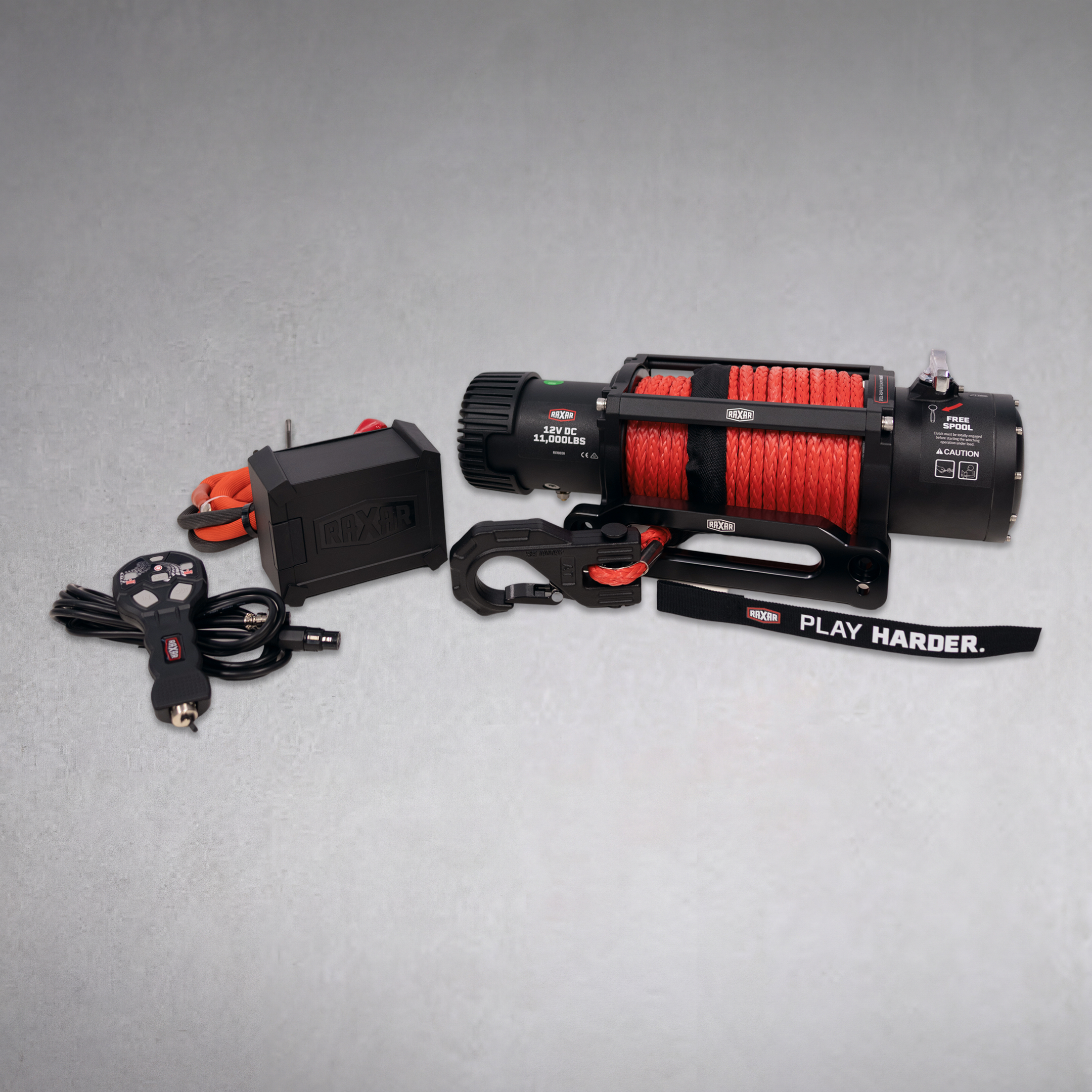

RAXAR WINCH
RAXAR 11000LB Winch combines exceptional strength, durability, and control to handle demanding recovery and pulling tasks. Built with a rugged UV and corrosion-resistant finish, stainless steel hardware, automatic braking system, and freespool clutch, it is designed for tough environments. Complete with an IP68-rated sealed construction and wireless remote control, it delivers confidence and performance wherever your adventures or work take you.
Product Description
Features
Specification
Key Features:
- Rated Line Pull: 11,000 lbs (5,000 kg)
- Heavy Duty Control Box
- UV & Corrosion Resistant Finish
- Rubberised Wireless Remote Control with 3.8m Lead
- Stainless Steel Hardware and Fittings
- Automatic In-Drum Brake
- Sliding Ring Gear Clutch (Freespool)
- IP68 Rated (Fully Sealed to Resist Dust & Water Penetration)
Built to Last
- 2-Year Electrical Warranty
- 5-Year Mechanical Warranty
Specifications
- Rated Line Pull: 11,000 lbs (5,000 kg) Single Line
- Motor: DC 12V
- Output Power: Series Wound 6.0HP (4.5kW)
- Gear Train: 3-Stage Planetary
- Gear Ratio: 265:1
- Clutch: Sliding Ring Gear
- Brake: Automatic In-Drum
- Synthetic Rope: 9.5mm × 28m
- Fairlead: Aluminium Reversible Standard & Offset Hawse
- Waterproof Rating: IP68 Rated Against Water & Dust Intrusion
- Battery Requirement: Minimum 650CCA
- Battery Leads: 100% Copper, 25mm² × 2m with Fibreglass Sleeve Protection
- Drum Size: 64mm × 224mm
- Dimensions: 542mm (L) × 160mm (D) × 187.5mm (H)
- Bolt Pattern: 254mm × 114.3mm
- Net Weight: 28kg
